HB40G Cylinder Hydraulic Breaker Cylinder of Hydraulic Hammer Breaker Parts for Stone Road Breakers Construction Machinery

HB40G Cylinder Hydraulic Breaker Cylinder of Hydraulic Hammer Breaker Parts for Stone Road Breakers Construction Machinery

Structure of hydraulic breaker

1.Cylinder
2.Valve Assembly
Easy maintenance and prevent cylinder from deforming.
3.Piston
Piston moves, hits the chisel, so kinetic energy of piston’s motion is converted to breakers’ impact power.
4.Front Head
Front head supports the whole breaker.
5.Chisel Pin
6.Chisel Bush
7.Chisel
Special super heat treatment. Moil point, blunt, and wedge chisel optional.

We provide all the spare parts for hydraulic breaker hammer, like: front head, cylinder, back head, piston, piston ring, through bolt, inner bush and outer bush, side bolt, chisel, chisel pin, etc.

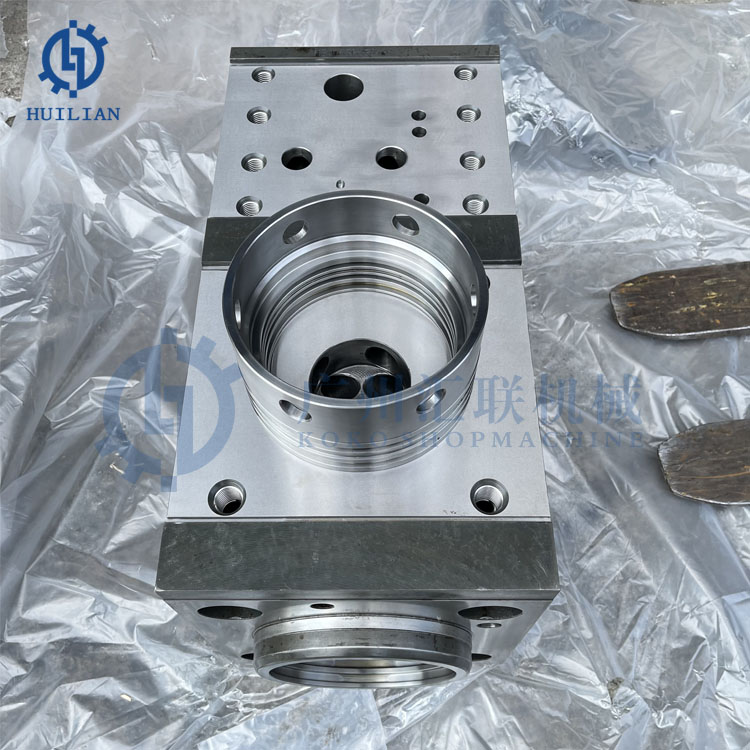

Hydraulic breaker cylinder
Our company specialized in manufacturing all kinds of hydraulic breaker hammer,breaker hammer pipeline and their accessories as well as excavator attachments, breaker parts has hydraulic breaker piston, Front & Back head, cylinder, Thrust & Outer bushings, Hammer drill rod and flat pin, Valve and valve, code Seal housing and so on. All the accessories of our pipeline, including clamps, ball valve, foot valve, wire plug, wire alignment, relief valve, lock valve, bracket, connector, hammer tube, arm iron pipe assembly, three-way iron pipe, are independently developed and manufactured by our factory to ensure product quality, safety and reliability.

We use high-precision product matching, and the matching tolerance is within 1-5 wire, which fully guarantees the hammer's striking strength.
The material of the middle cylinder is made of 20crmo, and is processed by a high-precision CNC center; after the processing is completed, it undergoes three hot water treatments and three cold treatments; the matching tolerance of the piston and the middle cylinder is within 5-7 wires, and each middle cylinder Both the piston and the piston are cold treated with liquid nitrogen to prevent the cylinder from expanding due to excessive oil temperature and cannot be used normally

Hydraulic Breaker Spare Parts

Core and support of the hammer: flat pin, cylinder block, piston, bolt, inner and outer sleeve, shell and drill rod
Crushing hammer: Crushing hammer is a key equipment in construction, quarrying, iron and steel smelting and other industries, used for crushing and dismantling hard objects. In this core task, flat pins, cylinder blocks, pistons, bolts, inner and outer sleeves, housings and rods all play an integral role in ensuring stable and efficient operation of the hammer in a variety of application scenarios. As a manufacturer, we are committed to providing high quality, high performance crushing hammer accessories to meet the needs of our customers in a variety of crushing tasks.
Flat pin: As the key connecting component in the crushing hammer, the flat pin ensures the stability of the drill rod during the crushing process, thus providing accurate crushing force.

Cylinder block: is the power source of the crushing hammer, by providing pressure to drive the piston, resulting in crushing action.
Piston: reciprocating movement in the cylinder block, hitting the drill rod, thereby breaking the material.
Bolts: play a role in fixing and connecting various components in the crushing hammer to ensure the stability of the overall structure.
Inner and outer sleeve: wrapped around the key parts of the hammer to protect and reduce wear.
Shell: It is the external protection structure of the hammer to resist the erosion and damage of the external environment.
Drill rod: is the direct working part of the crushing hammer, through high-speed impact and crushing action to break the material.

We can supply following hydraulic breakers parts

FAQ

Q1: What ‘s the MOQ?
A1: 1 piece.
Q2: How about the delivery time?
A2: Depends on needed quantity, normally 7 to 10 days.
Q3: How many years have you been producing parts of hydraulic breakers?
A3: For over 12 years, since 2011.
Q4: Can you produce according to customers’ design?
A4: Yes, we can customize the product according to the detailed specifications you provide.
Q5: How about the package?
A5: Standard exporting package.
Q6: Can you provide the sample?
A6: Yes, we can, but buyers need to pay for the cost of the sample and freight.

Hydraulic Hammer Breaker Parts

Construction Machinery Hydraulic Hammer Cylinder

HB40G Hydraulic Hammer Cylinder
