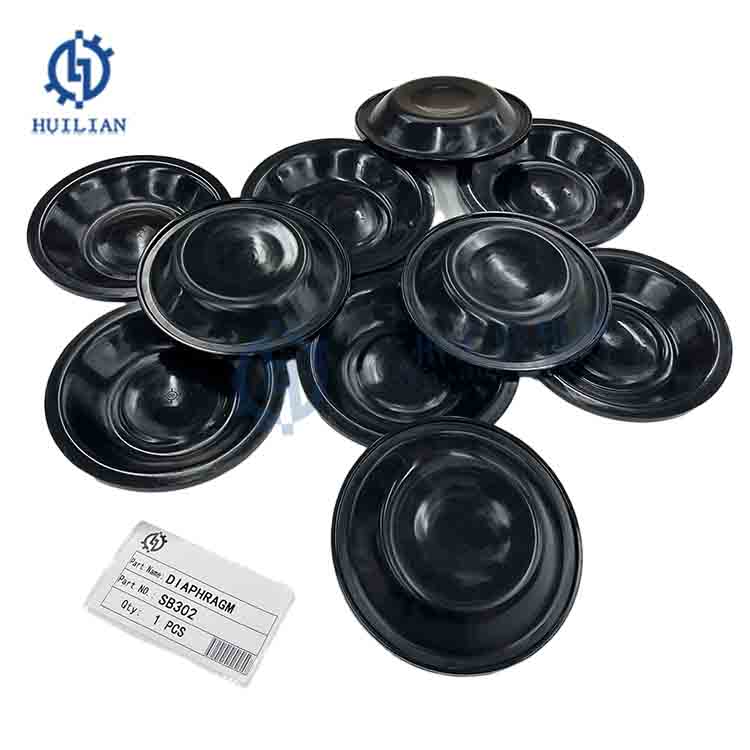

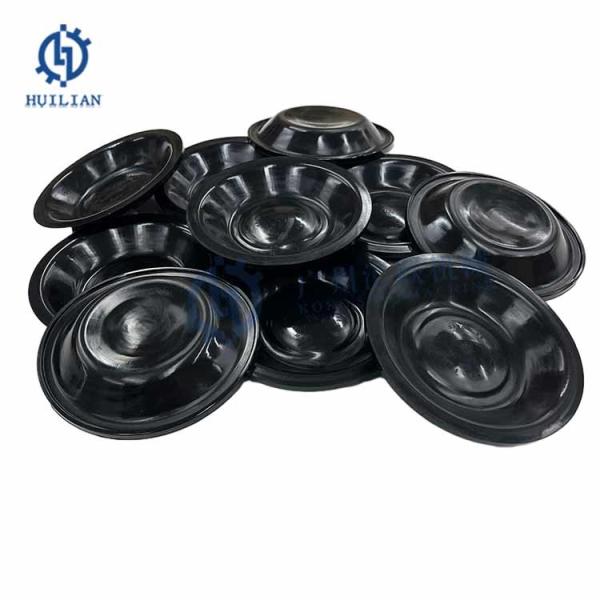

Atlas 3315235000 Membrane Hydraulic Breaker Diaphragm 3315235000 For SB202 SB300 SB302 SB452

Brand Name : Huilian

Model Number : SB302

CertifiCATEEEEion : ISO9001

Place of Origin : China

MOQ : 1 Pieces

Price : USD1-USD50

Payment Terms : L/C, T/T, MoneyGram, Western Union

Supply Ability : 10000 PCS per week

Delivery Time : 1-7days

Packaging Details : Plastic bag and Carton

Part Name : Breaker Hammer Diaphragm Membrane

Material : Rubber

Part number : 3315235000

Model : SB302

OEM/ODM : OEM Service Provided

Advantage : Long Life

Temperature : -35~+110° C

Feature : High chemical resistance

Contact Now

Why chose us
First,15 yease experience in the line of the market, produce high quality excavator spare parts
Secound, High quality at competitive price.
Third, Factory manufacturer, factory price
Fouth, Timely delivery
Fifth, Various of transportation way: Sea, Air, Bus, Express, etc
Sixth, Parts available in stock

Atlas 3315235000 Membrane Hydraulic Breaker Diaphragm 3315235000 for SB202 SB300 SB302 SB452

Part Name Breaker Hammer Diaphragm Membrane
Brand huilian
CertifiCATEEEEEEEEion ISO9001
Model SB302,SB300
Size Standard Size or Custom Size
Color Black And More
Materials Rubber
Hardness 70degree-85degree
Pressure 85~125Mpa
Temperature -35~+110° C
Feature Oil-resistant, heat resistant,Durable
AppliCATEEEEEEEEion Atlas Copco Breaker Hammer
MOQ 1 pcs
Packing PP bag, Carton, Wooden cx, or as Required
Related brands KRUPP,ATLAS,COPCO,NPK,FURUKAWA,TOKU,JACTY,MSB,SOOSAN ,DAEMO,TOPA,,KONAN,DOOSAN,DAEWOO,FINE.

Hydraulic Breaker Spare Parts Guangzhou Huilian Machinery Could Offer

Hammer Parts Main Body Back Head Charging Valve Cylinder Seal Retainer
Socket Plug Piston Adapter Valve Valve Plug Valve Sleeve
Front Head Grease Nipple Rod Pin Stop Pin Rubber Plug Front Head Pin
Ring Bush Thrust Bush Upper Bush Front Cover Tool Bush Lower Bush
Rod Moil Point Chisel Washer Through Bolt Side Rod Hex Nut
Air Check Valve Valve Adjuster Accumulator Accumulator Body Accumulator Cover Socket Bolt
Charging V/V Diaphragm Seal Kit O-Ring Seal Gas Seal Step Seal
Buffer Seal Dust Seal U-Packing Back-up ring Side Bolt Upper Cushion
Down Cushion Tool Set N2 Gas Charging Set N2 Gas Cylinder B-3way valve assy

Atlas 3315235000 Membrane Hydraulic Breaker Diaphragm 3315235000 For SB202 SB300 SB302 SB452

Parts list

No. Description Quantity Part number
1 Hammer body 1 -
2(3-5) Bushing standard, complete 1 3315 3019 80
3 Bushing 1 -
4 Scraper ring 1 3315 3250 00
5 O-ring 4 0663 2106 17
6 Stop ring 1 3315 3014 00
7 Plug 7 0686 6442 07
8 Water nozzle, option 2 3315 2560 06
9 Spring pin, option 1 0108 1691 28
10 Lock pin 1 3315 2031 00
11 Lock buffer 1 3315 1419 00
12 Tool retainer 2 3315 2030 00
13 Hexagon socket plug 4 0686 3718 01
14 Hexagon socket screw 2 0215 0003 28
15 Coil spring 1 3315 3035 00
16 Diaphragm support 1 3315 3490 13
17 Diaphragm 1 3315 2350 00
18 Accumulator house 1 3315 3487 00
19 Hexagon socket screw 10 0211 1965 34
20 Plug 1 0686 3718 05
21 Charge valve 1 3315 2921 00
22 O-ring 1 0663 2120 00
23 Seal washer 1 0661 1000 24
24 O-ring 1 0663 2114 00
25 Parallel pin 1 0101 4140 00
26(27-30) Pressure release valve, complete 1 3315 3150 00
27 Pressure release valve 1 -
28 O-ring 1 9125 6211 00
29 O-ring 1 0663 2104 21
30 Support ring 1 0661 2004 01
31(32-34) Nipple, complete 1 0570 7000 04
32 Nipple 2 -
33 Seal ring 2 0664 0000 04
34 O-ring 2 0663 2102 17
35 Cap 2 0570 7000 10
36 Seal 2 0665 0900 14
37 Plug 1 3315 3367 00
38 Grease nipple 1 0544 2153 00
39 O-ring 1 0663 2104 21
40 Restrictor, standard 1 3315 3588 63
41 Restrictor 1 3315 3588 54
42 Restrictor 1 3315 3152 35
43 O-ring 1 9125 6211 00
44 Restrictor plug 1 3315 3587 00
45 Control valve 1 3315 2776 00
46 O-ring 2 0663 2114 44
47 Valve cover 1 3315 3520 10
48 Wiper 1 0665 9099 52
49 Piston rod seal 1 0665 0701 37
50 Seal ring 9 0663 9900 31
51 Liner 1 3315 3017 00
52 Piston 1 3315 3021 00
53 Piston rod seal 1 0665 0701 46
54 Back head 1 3315 3020 00
55(56-57) Check valve, complete 1 3315 2448 81
56 Check valve 1 -
57 Valve rubber 1 3315 2808 00
58 Hexagon head screw 8 0147 1481 03
59 Base plate 1 3315 3566 00
60(61-62) Set of 8 screws, complete 1 3315 3653 60
61 Screw 8 -
62 Nut 8 -

Atlas 3315235000 Membrane Hydraulic Breaker Diaphragm 3315235000 For SB202 SB300 SB302 SB452
