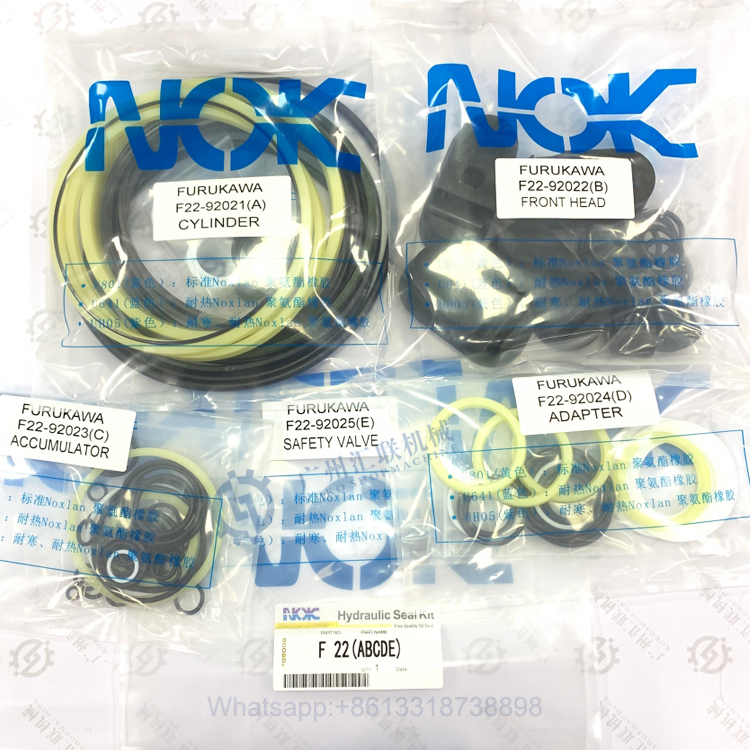

Furukawa F22 - 92021 Hydraulic Breaker Seal Kit Rock Hammer Hydraulic Repair Kits
Product Description
| Product Name | F22 A B C D E Hydraulic Breaker Seal Repair Kits |
| Part Number | F22-92021 F22 - 92021 |
| Model | F22 A B C D E |
| Materials | PU PTFE FKM NBR |
| Size | As Required |
| Hardness | 70degree-95degree |
| Style | Hydraulic Breaker Seal Kit |
| AppliCATEEEEEEEEEEEEion | Furukawa Hydraulic Breaker Hammer |
| Core Components | Diaphragm Chisel Piston Front Head Cylinder Control Valve |
| Suitable | Rock Breaker Hammer |
Why choose us?
1. We are manufacturers and product direct sales.
2. More than 10 years of industry experience.
3. Professional production technology, product good quality and Low price.
4. Fast delivery and Support OEM/ODM order.
5. Large Stock, we have all brand of spare parts
This Hydraulic Breaker Seal kit is an important part of the hydraulic rock breaker.
we have hydraulic breaker seal kits for CATEEEEEEEEEEEE, EDT, JCB, NPK, MSB, Atlas-copco, Soosan, Furuwawka, Daemo, Krupp,
, Fine, Toku, Toyo, Okada, Beilite, Everdigm, Montabert, Indeco, Kwanglim, General, Komac, Rammer, Konan,
Teisaku, Hanwoo, Komatsu......and so on.
There are many models to choose from, if you want a more suitable price, please contact me for details.
Hydraulic Breaker Seal Kit
| Furukawa |
| HB-0.5G | HB-10G | HB-40G | HB-4R | F-2 | F-11 | F-27 | FX-25 | FX-360 |
| HB-1G | HB-15G | HB-50G | HB-100 | F-3 | F-12 | F-30 | FX-35 | FX-470 |
| HB-2G | HB-18G | HB-05R | HB-200 | F-4 | F-17 | F-35 | FX-45 | FXJ-175 |
| HB-3G | HB-20G | HB-1R | HB-300 | F-5 | F-19 | F-45 | FX-55 | FXJ-275 |
| HB-5G | HB-30G | HB-2R | HB-400 | F-6 | F-20 | F-70 | FX-65 | FXJ-375 |
| HB-8G | HB-35G | HB-3R | F-1 | F-9 | F-22 | FX-15 | FX-220 | FXJ-475 |
Atlas Copco Hydraulic Breaker Seal Kit Model
| SB-50 | SB-450 | SBC-800 | HB-4100/4200 | HBC-6000 | MB-700/750 | TEX-80 | TEX-700 |
| SB-52 | SB-452 | SBC-850 | HB-4700 | PB-110 | MB-800 | TEX-100 | TEX-900 |
| SB-100 | SB-552 | HB-2000 | HB-5800 | PB-160 | MB-1000 | TEX-110 | TEX-1400 |
| SB-102 | SBC-115 | HB-2200 | HB-7000 | PB-210 | MB-1200 | TEX-180 | TEX-1800 |
| SB-150 | SBC-225 | HB-2500 | HBC-1100 | PB-310 | MB-1500 | TEX-200 | TEX-2000 |
| SB-152 | SBC-410 | HB-3000 | HBC-1700 | PB-420 | MB-1600 | TEX-250 | |
| SB-200 | SBC-610 | HB-3100 | HBC-2500 | PB-530 | MB-1700 | TEX-400 | |
| SB-300 | SBC-650 | HB-3600 | HBC-4000 | MB-500 | TEX-75 | TEX-600 | |
Parts List
ITEM PART NO. PART NAME Q’TY
101a 002204-100010 CYLINDER 1
A01 CYLINDER 1
A02 FXJ125-10105 HELICOIL INSERT 6
A03 002204-900010 HELICOIL INSERT 4
102 002204-100030 CYLINDER LINER 1
103 002204-100040 PACKING 1
104 002201-100070 SCRAPER 1
105 002204-100050 DUAL SEAL 7
106 002204-100090 DISTANCE WASHER 1
107 002204-100100 SEAL RETAINER 1
108 002204-100060 GLIDE RING 1
109 002204-100070 STEP SEAL 1
110 002204-100080 GLIDE RING 1
111 161011-00130 O-RING 2
112 262031-00130 BACK-UP RING 1
113 002301-100060 PLUG 1
114 160011-00018 O-RING 1
115 FXJ125-10121 BUSH 1
116 160011-00020 O-RING 2
117 FXJ125-10121 BUSH 1
118 160011-00024 O-RING 3
119 084891-01000 PLUG 4
120 160011-00008 O-RING 4
121 084891-02000 PLUG 10
122 160011-00011 O-RING 10
123 084891-03000 PLUG 2
124 160011-00014 O-RING 2
125 084891-04000 PLUG 1
126 084891-06000 PLUG 1
127 002204-100110 FRONT HOLDER 1
128 002204-100120 FRONT COVER 1
129 002204-100130 STOP PIN 2
130 002203-100140 STOP PIN 2
131 002407-100110 A-PLUG 4
132 002204-100140 ROD PIN 2
133 FXJ125-10125 KNOCK PIN 3
134 001100-20123 GREASE NIPPLE 1
135 166152-02000 PLUG 1
136 002204-100150 ARMOUR PLATE 1
137 102032-20040 SOCKET BOLT 4
151 002204-110010 PISTON 1
381 002204-250010 MOIL POINT ROD 1
381 002204-250020 FLAT ROD 1
381 002204-250030 WEDGE POINT ROD 1
381 002204-250040 BALL POINT ROD 1
401 002204-300010 BACK HEAD 1
402 FXJ125-30103 CHARGING VALVE 1
403 FXJ125-30109 PLUG 1
404 160011-00006 O-RING 1
405 160011-00018 O-RING 1
406 161011-00130 O-RING 1
407 084891-10000 PLUG 2
408 161011-00029 O-RING 2
451 002204-360010 BOLT 4
452 002204-360020 WASHER 4
902204-920020 SEAL KIT (A) (R1) SEE PAGE 02-01
902204-920030 SEAL KIT (B) (R2) SEE PAGE 03-01
902204-920040 SEAL KIT C
Company Profile
Guangzhou Huilian Machine Equipment Co.,Ltd. is a professional supplier for hydraulic breaker parts and excavator parts and
OEM hydraulic seals manufacturer. we specialize in this field over 10 years, with good quality and pretty competitive price!
Our company supply parts for almost all brands hyd breakers. seal kits, diaphragm, piston, chisel, upper and lower bush, rod pin,
through bolts, side bolts, control valve, front head, cylinder, back head, accumulator, charger kit, gas bottle, shock absorber, ect.
we have hydraulic breaker parts for CATEEEEEEEEEEEE, EDT, JCB, NPK, MSB, Atlas-copco, Soosan, Furuwawka, Daemo, Krupp, , Fine,
Toku, Toyo, Okada, Beilite, Everdigm, Montabert, Indeco, Kwanglim, General, Komac, Rammer, Konan, Teisaku, Hanwoo,
Komatsu......and so on.
Also We have our own OEM production capacity to meet any of your requriements,and have excavator parts for Komatsu, Hitachi,
Kobelco, , Daewoo, Hyundai, EC, Sumitomo, Kato, Sany, Xcmg, Liugong.....and so on.
HB0.5G HB1G HB2G HB3G HB5G HB8G HB10G HB15G HB18G HB20G HB30G HB35G HB40G HB50G HB05R HB1R HB2R
HB3R HB4R HB100 HB200 HB300 HB400 F1 F2 F3 F4 F5 F6 F9 F11 F12 F17 F19 F20 F22 F27 F30 F35 F45 F70 FX15 FX25
FX35 FX45 FX55 FX65 FX220 FX360 FX470 FXJ175 FXJ275 FXJ375 FXJ475
